MYD88 Innate Immune Signal Transduction Adaptor

2022-02-22   Marta Rachele Stefanucci , Alessandro Beghini

Department of Hematology, ASST Grande Ospedale Metropolitano Niguarda, Milan, Italy

Abstract

MYD88, 3p22.2, is involved in the innate and adaptive immune response encoding for a cytosolic adapter protein that regulates the activation of numerous proinflammatory genes acting as a significant signal transducer in the interleukin-1 and Toll-like receptor signaling pathways. The encoded protein is formed by an N-terminal death domain and a C-terminal Toll-interleukin1 receptor domain. Defects in this gene lead to an increased susceptibility to pyogenic bacterial infections. Multiple transcript variants are the result of alternative splicing. {provided by RefSeq, Feb 2010}.

Keywords
Immunity,MYD88 L265P,Waldenstrom’s macroglobulinemia,IgM monoclonal gammapathies

DNA/RNA

Description

DNA SIZE: 4545 bp DNA linear (hg38), plus strand.
This gene has 13 transcripts (splice variants), 202 orthologues, no paralogues and it is associated with 77 phenotypes.
It starts at 38138661 and ends at 38143021 bp from pter. (according to hg38-Dec_2013).
Chr 3 (hg38), Starts at 38138661 and ends at 38143022 bp from pter.              https://www.ncbi.nlm.nih.gov/genome/gdv/browser/gene/?id=4615

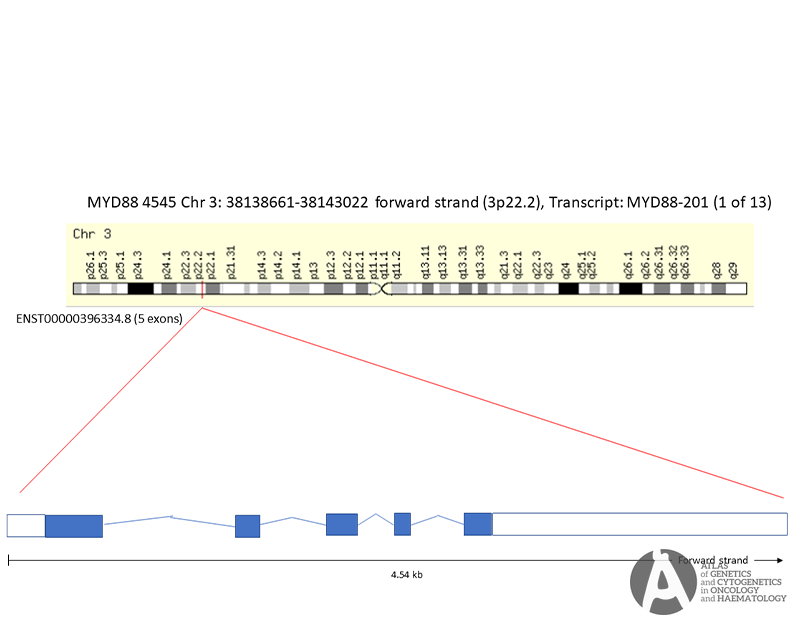

Figure 1. MYD88 gene.


Transcription

MYD88-201 ENST00000396334.8: mRNA 2850 bp, protein 296aa;MYD88-202 ENST00000416282.3: 2725 bp, no protein, retained intron;MYD88-203 ENST00000417037.8: mRNA 2638 bp, protein 251aa;MYD88-204 ENST00000421516.3: mRNA 2691 bp, protein 304aa;MYD88-205 ENST00000460295.1: 1088 bp, no protein, retained intron;MYD88-206 ENST00000463956.1: 583 bp, no protein, processed transcript;MYD88-207 ENST00000481122.5: 712 bp, no protein, processed transcript;MYD88-208 ENST00000484513.1: 3314 bp, no protein, retained intron;MYD88-209 ENST00000650112.2: mRNA 2352 bp, protein 146aa;MYD88-210 ENST00000650905.2: mRNA 2667 bp, protein 296aa;MYD88-211 ENST00000651800.2: mRNA 2483 bp, protein 191aa;MYD88-212 ENST00000652213.1: mRNA 2655 bp, protein 245aa;MYD88-213 ENST00000652590.1: 2839 bp, no protein, retained intron.www.ensembl.org

Proteins

Description

MyD88, Myeloid differentiation primary response protein, is an adapter protein with a crucial role in the innate and adaptive immune response. This protein regulates the activation of numerous proinflammatory genes acting as an essential signal transducer in the interleukin-1 and Toll-like receptor signaling pathways.
https://www.proteinatlas.org/ENSG00000172936-MYD88

MyD88 is composed by 296 amino acid and its molecular mass is 33233 Da.                                                  https://www.genecards.org/cgi-bin/carddisp.pl?gene=MYD88#proteins

The quaternary structure consists in an homodimer. MyD88 also forms heterodimers with MyD88 adapte-like (Mal), also termed TIRAP, which connect MyD88 to the receptor complex for TLR-2 and TLR4 signaling in response to bacterial infections. 1


Expression

In human, MyD88 is characterized by a ubiquitous expression in appendix (RPKM 32.5), bone marrow (RPKM 32.2) and 25 other tissues including adrenal, brain, colon, duodenum, endometrium, esophagus, fat, gall bladder, heart, kidney, liver, lung, lymph node, ovary, pancreas, placenta, prostate, salivary gland, skin, small intestine, spleen, stomach, testis, thyroid, urinary bladder.
https://www.ncbi.nlm.nih.gov/gene?Db=gene&Cmd=DetailsSearch&Term=4615#gene-expression


Figure 2. Bulk tissue gene expression for MyD88.                                                                            https://www.gtexportal.org/home/gene/MYD88


Localisation

MyD88 is mainly localizated in the cytoplasm (cytosol, mithocondria and vesicles) and nucleus.                          https://www.genecards.org/cgi-bin/carddisp.pl?gene=MYD88#localization

Function

Interacting with transcriptional repressors as LRRFIP1 and LRRFIP2 (Leucine-rich repeat flightless-interacting protein 1 and 2), MyD88 positively regulates Toll-like receptor (TLR) signaling in response to agonist by competing with the negative FLII (Flightless-I) regulator for MyD88-binding.                                                                      https://www.ebi.ac.uk/interpro/entry/InterPro/IPR019139/

It has also an influence on the interleukins, increasing IL-8 transcription 2 and being involved in IL-18-mediated signaling pathway. Activating IRF1 allows its rapid migration into the nucleus to mediate the induction of IFN-beta, NOS2/INOS, and IL12A genes. 3
It interacts with many receptors and regulatory factors such as bone marrow tyrosine kinase on chromosome X (BMX), interleukin 1 receptor-like 1 (IL1RL1) against Helicobacter pylori infection 4, and a serine/threonine protein kinase (IKBKE), that belongs to the IKK family. 5
It induces IL1B release through NLRP3 inflammasome activation upon TLR8 activation by GU-rich single-stranded RNA (GU-rich RNA) derived from viruses such as SARS-CoV-2, SARS-CoV and HIV-1. 3
IL1B treatment allows the formation of a complex with PELI1, IRAK1, IRAK4 and TRAF6 leading to NF-kappa-B activation with the recruitment of MAP3K7/TAK1, TAB1 and TAB2, cytokine secretion and the inflammatory response. 6-8 The complex formation can be blocked through the binding of SMAD6 to PELI1 negatively regulating IL1R-TLR signaling and eventually NF-kappa-B-mediated gene expression. MyD88 may also interact with Phosphoinositide-3-Kinase Adaptor Protein 1 (PIK3AP1). This protein has a direct interaction via TIR domain with DHX9 (via H2A and OB-fold regions). 9
It directly interacts with OTUD4 deubiquitinase. 10
In case of microbial infection, interacts with uropathogenic E. Coli protein TcpC or uropathogenic E. Faecalis protein TcpF suppressing Toll-like receptor (TLR)-mediated cytokine production.                                                            https://www.genecards.org/cgi-bin/carddisp.pl?gene=MYD88#proteins

MyD88 has also a role in the maintenance of gut homeostasis and in the control of the expression of the antimicrobial lectin REG3G in the small intestine (By similarity).

Figure 3. MyD88-dependent TLR/IL-1R signaling.

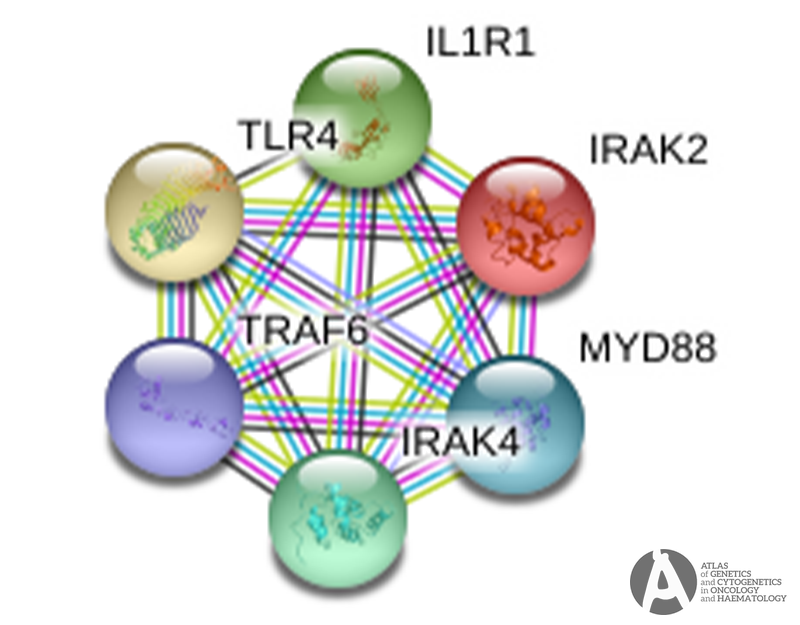

Figure 4. String Interaction Network for MyD88.                                                                                                          https://www.genecards.org/cgi-bin/carddisp.pl?gene=MYD88


Homology

The MYD88 gene is conserved in chimpanzee, Rhesus monkey, dog, cow, mouse, rat, chicken, zebrafish, mosquito and frog.
https://www.ncbi.nlm.nih.gov/gene?Db=gene&Cmd=DetailsSearch&Term=4615

Mutations

Mutations

In the first report of MYD88 L265P somatic mutation in IgM-associated light-chain amyloidosis has been demonstrated that this mutation, which lead to constitutive activation of the nuclear factor kB pathway, was oncogenically active in 29% of patients with activated B-cell type diffuse large B-cell lymphoma. 11 The substitution of leucine by proline at position 265 (L265P) is the most common somatic variant of MYD88 mutation 11 because of a single nucleotide change (T→C) in chromosome 3p22.2. 12 This mutation was detected in 86% to 100% of patients with WM or lymphoplasmacytic lymphoma, 12,13 at a lower frequency in patients with IgM MGUS, from 10% to 87%, 12,14 in a percentage ranging from 36% to 38% as regards primary central nervous system lymphoma; 15,16 6% to 21% of splenic marginal zone lymphoma, 13,14,17 a lower percentage, 9%, of gastric mucosa associated lymphoid tissue lymphomas, and in 2.9% to 4% of the patients with chronic lymphocytic leukemia. 17,18

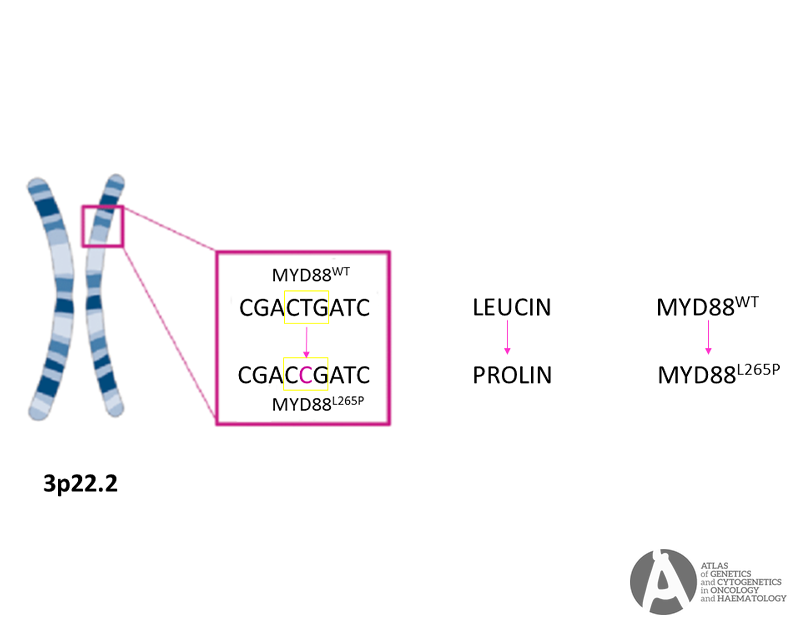

Figure 5. The most common somatic variant of MYD88 mutation is the substitution of leucine by proline at position 265 (L265P).

Germline loss-of-function mutations in MYD88 lead to immunodeficiency with recurrent pyogenic infections. 19
Somatic gain-of-function mutations contribute to certain B cell malignancies. 11,12,18

Bibliography

Reference NumberPubmed IDLast YearTitleAuthors
1195924972009MyD88 adapter-like (Mal)/TIRAP interaction with TRAF6 is critical for TLR2- and TLR4-mediated NF-kappaB proinflammatory responses.Verstak B et al
290138631997The cloning and characterization of human MyD88: a member of an IL-1 receptor related family.Bonnert TP et al
31022951978[Cor triatriatum associated with a ventricular septal defect in infancy. 2 cases treated surgically].Binet JP et al
4329855782020Interaction between MyD88, TIRAP and IL1RL1 against Helicobacter pylori infection.Fulgione A et al
5317330402020Advances in IKBKE as a potential target for cancer therapy.Yin M et al
6153618682004Interferon-alpha induction through Toll-like receptors involves a direct interaction of IRF7 with MyD88 and TRAF6.Kawai T et al
7243163792014Functional assessment of the mutational effects of human IRAK4 and MyD88 genes.Yamamoto T et al
8195062492009Structural basis for the multiple interactions of the MyD88 TIR domain in TLR4 signaling.Ohnishi H et al
9206968862010Aspartate-glutamate-alanine-histidine box motif (DEAH)/RNA helicase A helicases sense microbial DNA in human plasmacytoid dendritic cells.Kim T et al
10293950662018OTUD4 Is a Phospho-Activated K63 Deubiquitinase that Regulates MyD88-Dependent Signaling.Zhao Y et al
11211790872011Oncogenically active MYD88 mutations in human lymphoma.Ngo VN et al
12229313162012MYD88 L265P somatic mutation in Waldenström's macroglobulinemia.Treon SP et al
13233555352013Prevalence and clinical significance of the MYD88 (L265P) somatic mutation in Waldenstrom's macroglobulinemia and related lymphoid neoplasms.Varettoni M et al
14234463122013MYD88 L265P is a marker highly characteristic of, but not restricted to, Waldenström's macroglobulinemia.Jiménez C et al
15249708102014Mutational analysis of primary central nervous system lymphoma.Bruno A et al
16220206312011Activating L265P mutations of the MYD88 gene are common in primary central nervous system lymphoma.Montesinos-Rongen M et al
17233212512013MYD88 L265P in Waldenström macroglobulinemia, immunoglobulin M monoclonal gammopathy, and other B-cell lymphoproliferative disorders using conventional and quantitative allele-specific polymerase chain reaction.Xu L et al
18216429622011Whole-genome sequencing identifies recurrent mutations in chronic lymphocytic leukaemia.Puente XS et al
19186698622008Pyogenic bacterial infections in humans with MyD88 deficiency.von Bernuth H et al

Citation

Marta Rachele Stefanucci ; Alessandro Beghini

MYD88 Innate Immune Signal Transduction Adaptor

Atlas Genet Cytogenet Oncol Haematol. 2022-02-22

Online version: http://atlasgeneticsoncology.org/gene/208987/myd88-innate-immune-signal-transduction-adaptor
